Description
Description:

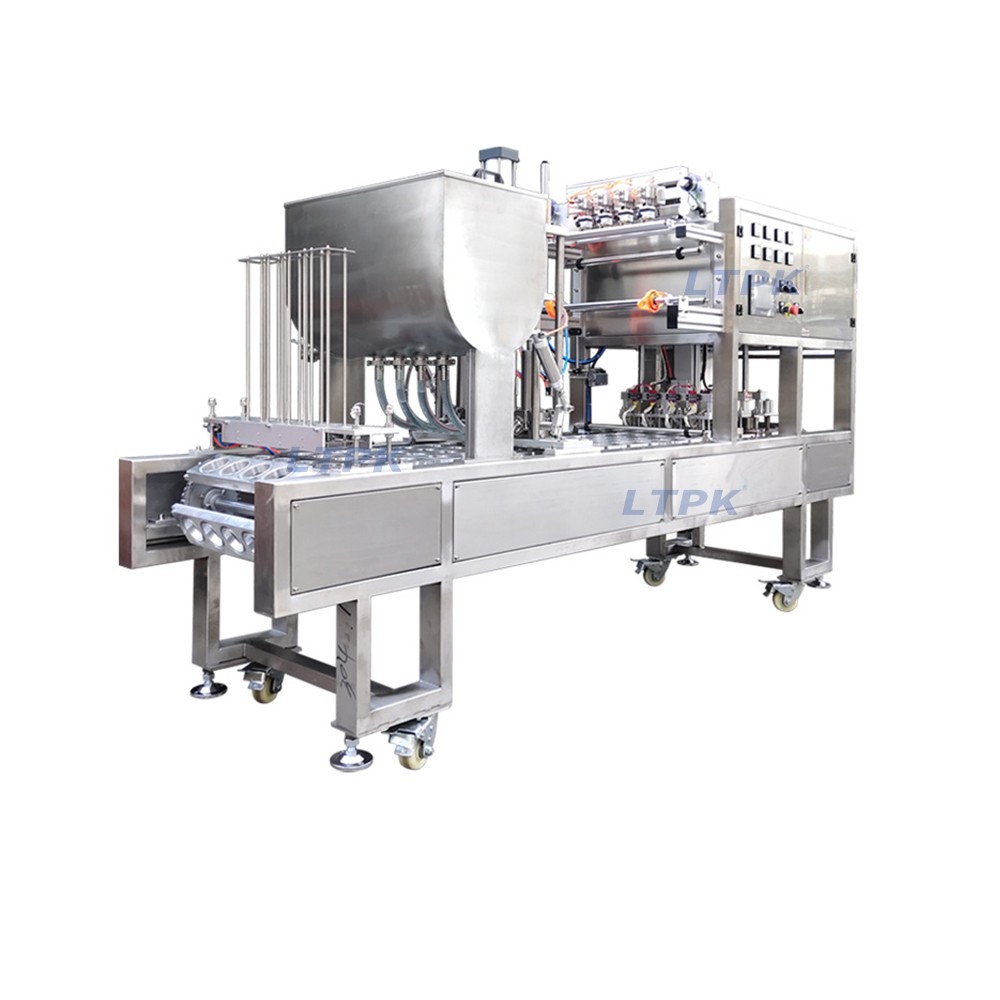

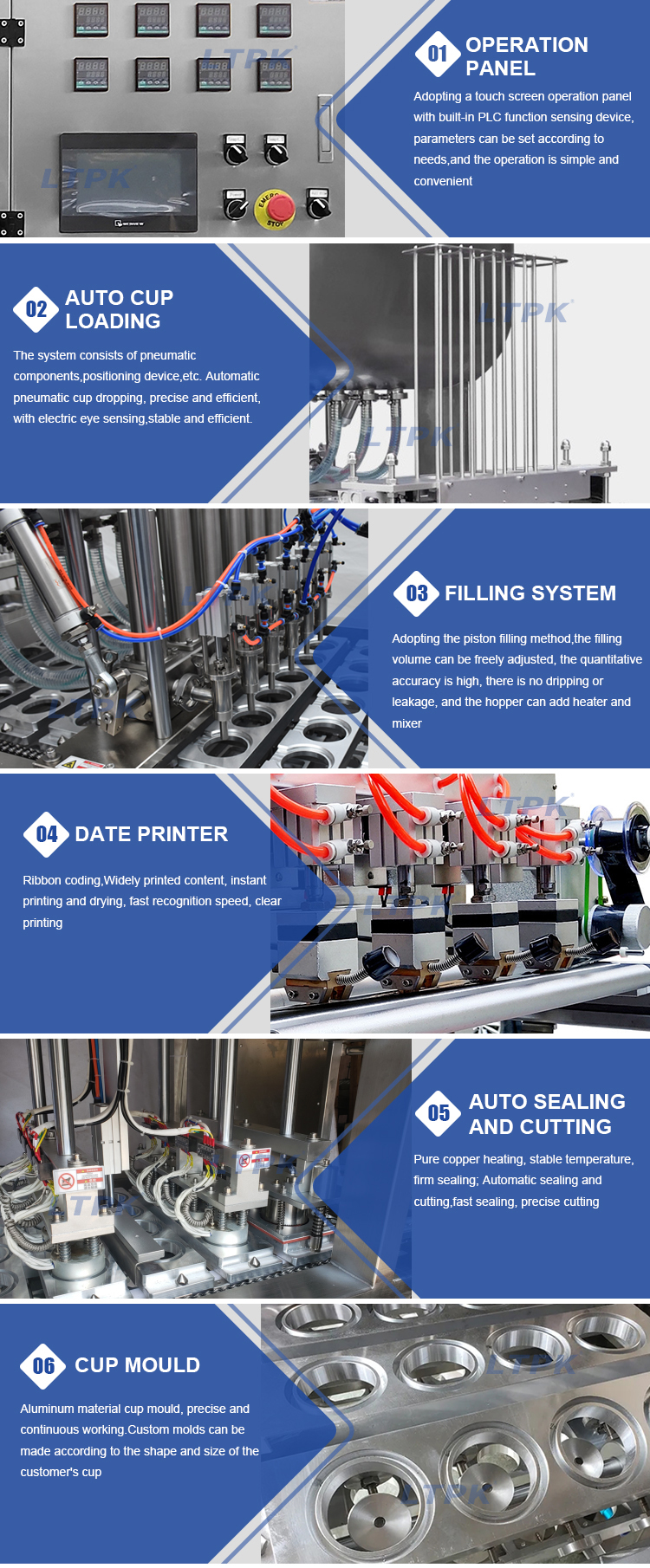

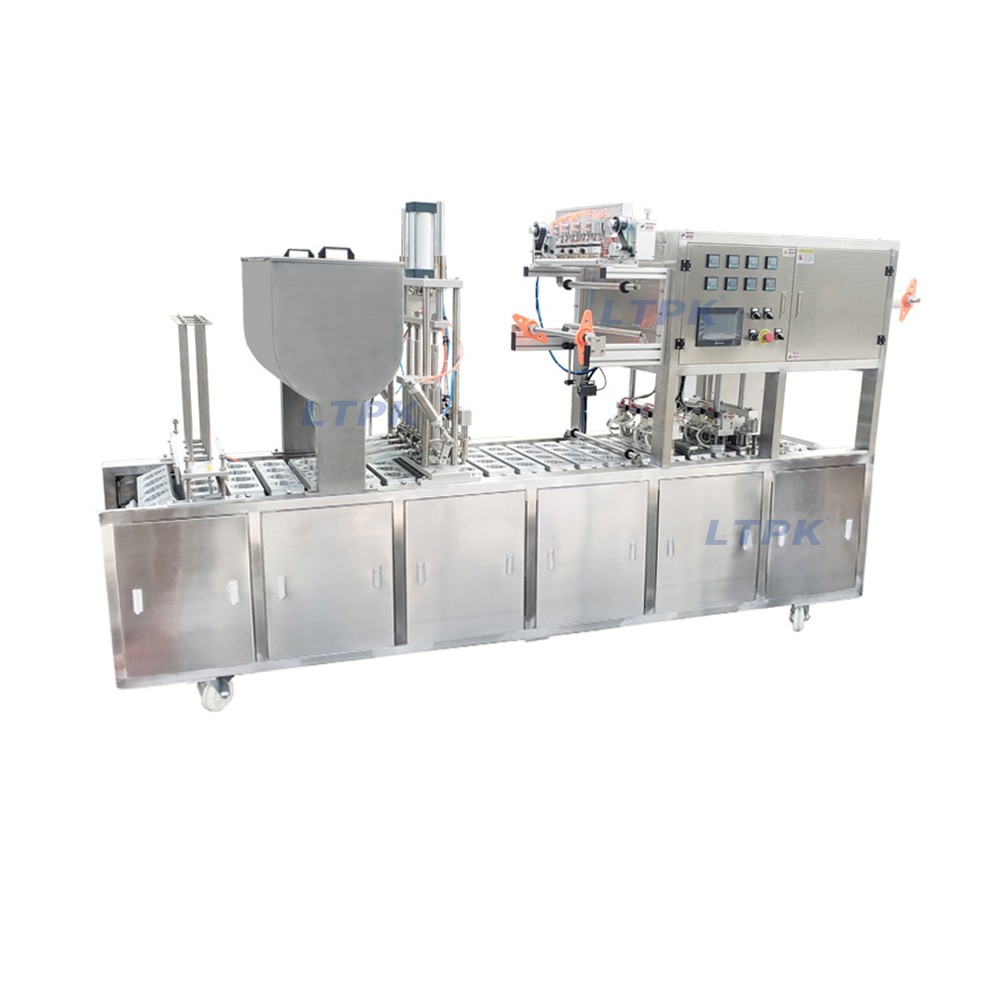

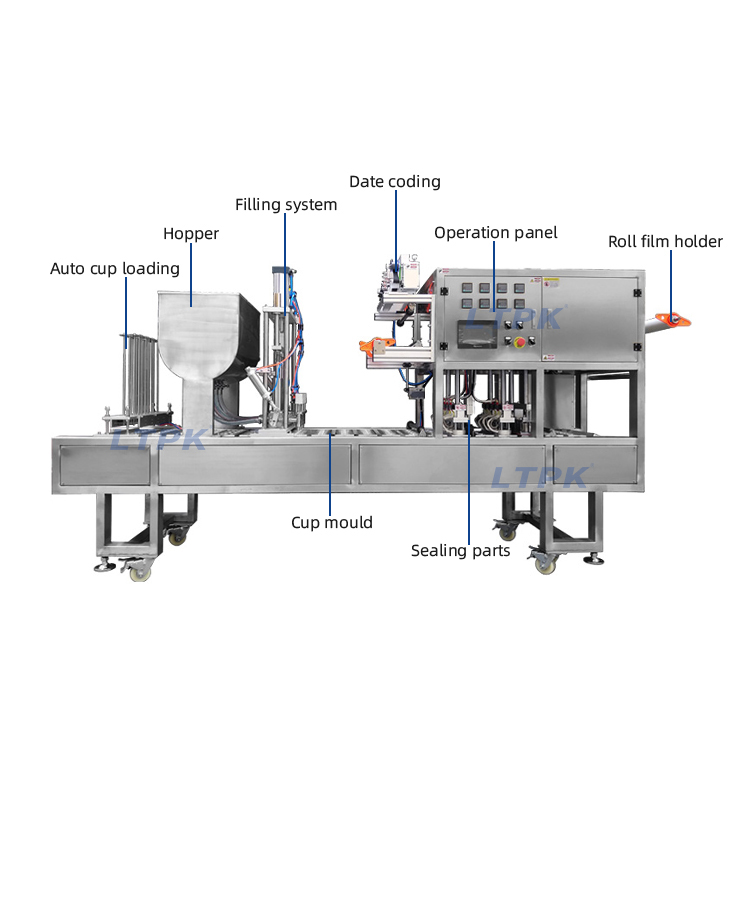

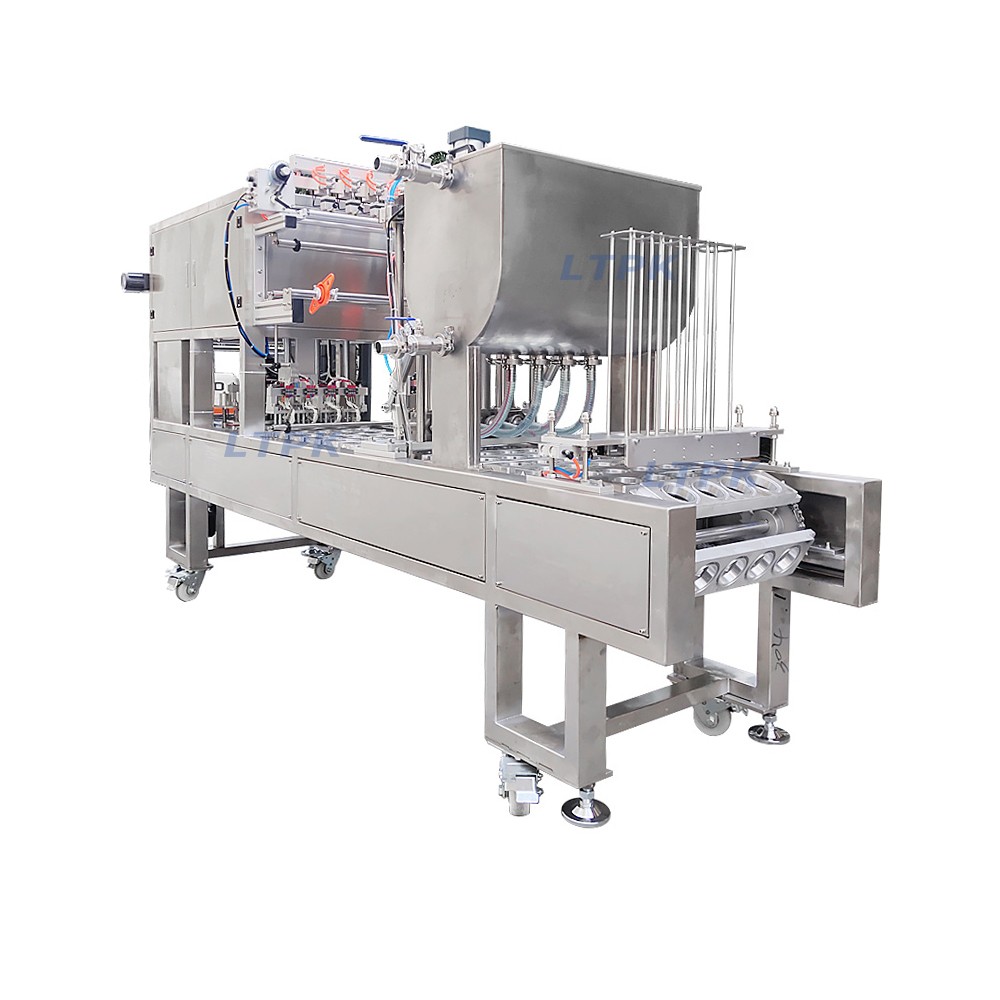

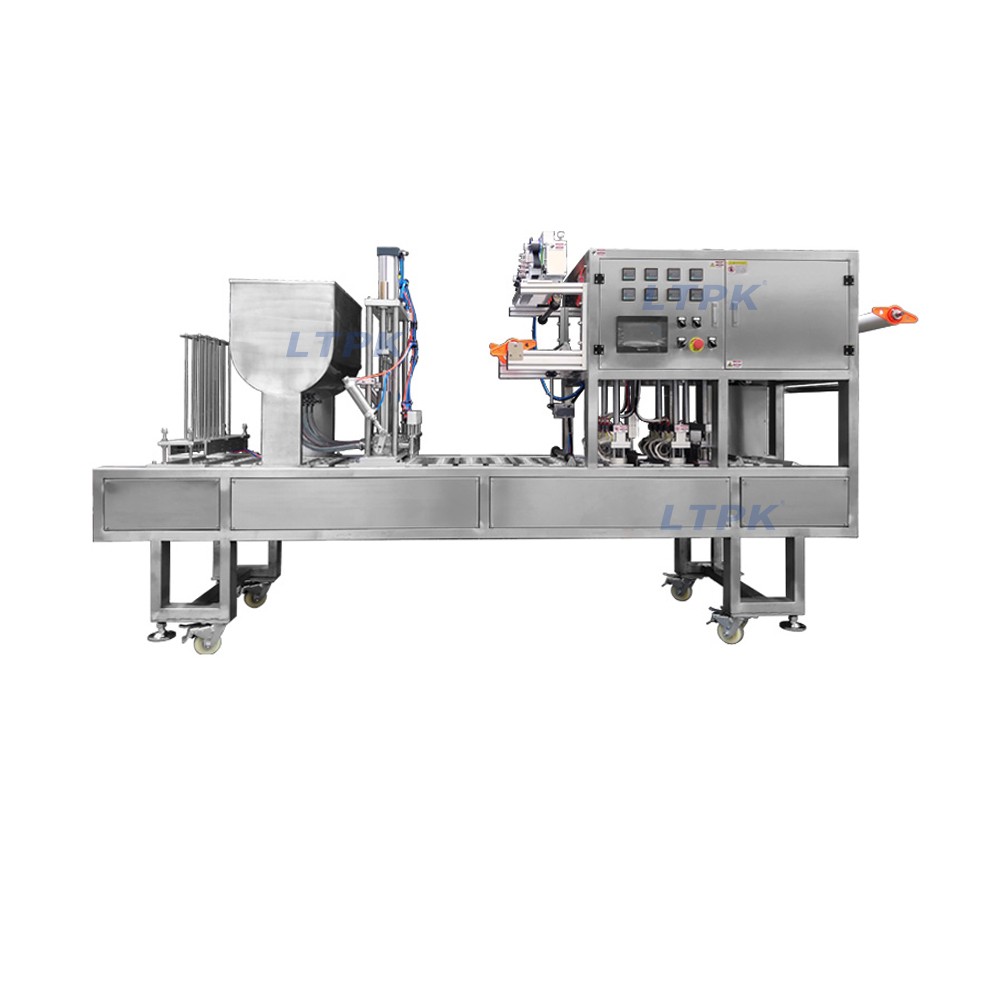

This filling and sealing machine is a full automatic packaging production line. This machine adopts stainless steel fuselage, accords with hygienic requirements and cleanliness. It can be applied to plastic or paper cups, from automatic lift boxes or cups, quantitative filling, heat sealing system, automatic membrane cutting and waste membrane recovery and other functions, and a series of processes can be automatically completed. Adopt the famous brand control system and pneumatic components in Japan, Taiwan and China, which has the characteristics of low failure rate, stable operation and long service life.
Application:
The machine are applicable to fill and seal cups, bowls,boxes, trays, cans, pots and so on,used to fill with liquid, cream or solid material, such as yogurt,milk,jelly,juice, ketchup,fruit salad, pulp, mineral water and so on.
Technical parameters:
Model |
BG60A-4 |
Packing Speed |
3200-3600cups/hour(4 lane cups,can custom) |
Voltage |
380V/3Phase |
Machine Power |
4.5KW |
Filling Range |
10-300ml (can custom) |
Cup caliber |
Customized according to customer requirements |
Air source |
0.5MPa-0.75MPa |
Dimension |
300*100*180 cm |
Machine Weight |
About 800kg |
