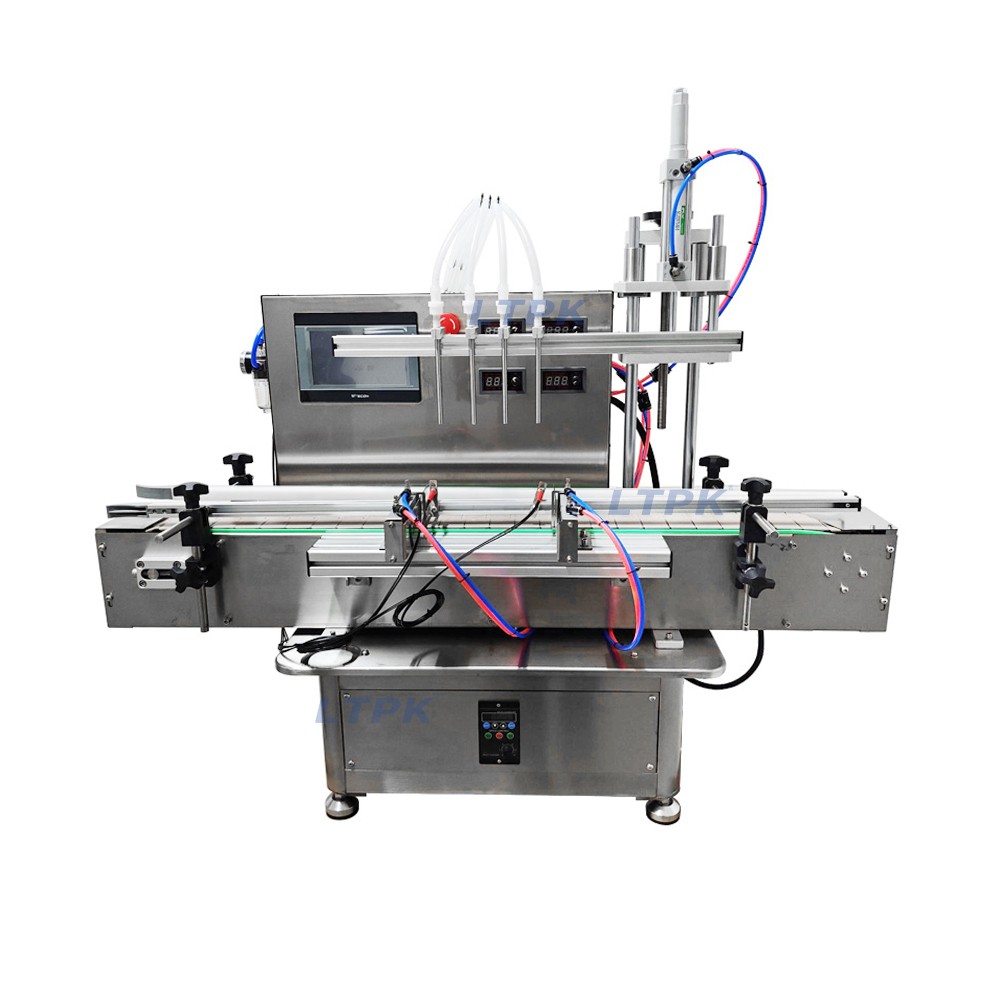

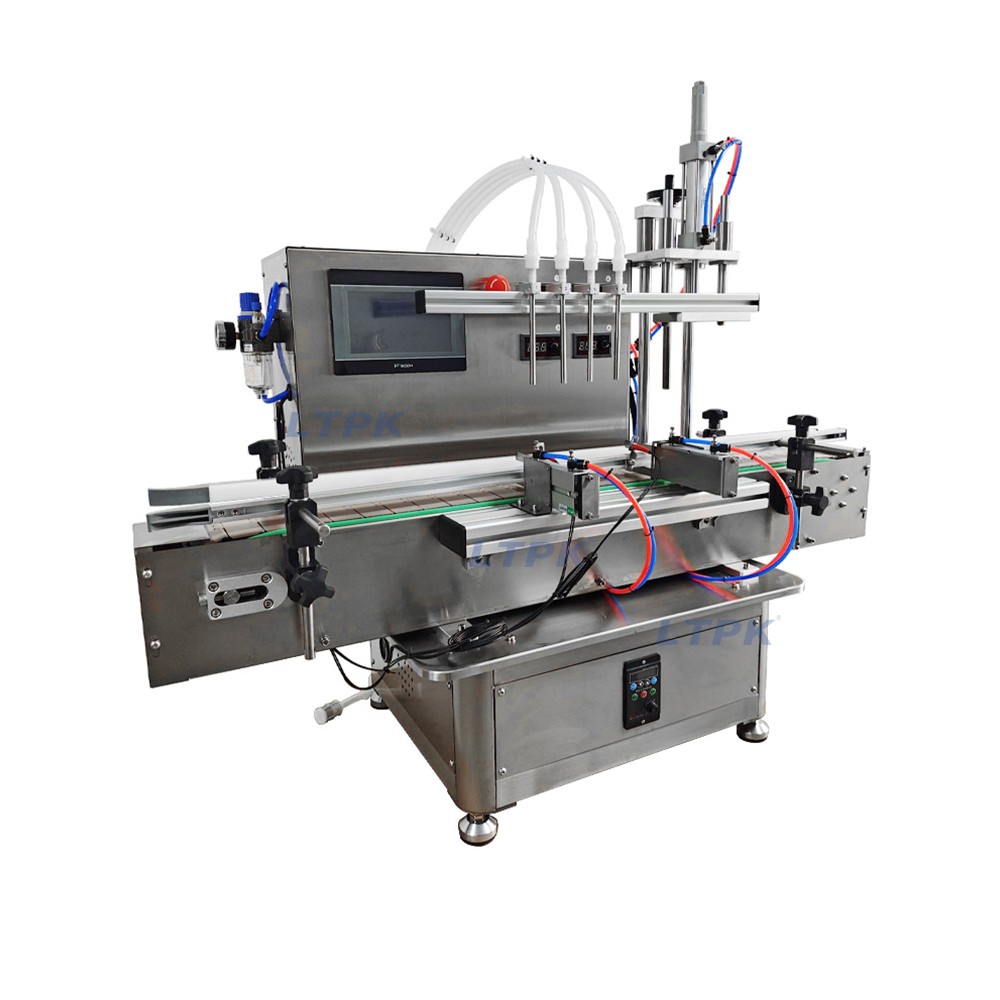

  • Auto desktop 4 nozzles peristaltic pump liquid filler filling machine 2.4L/min
  • Auto desktop 4 nozzles peristaltic pump liquid filler filling machine 2.4L/min
  • Auto desktop 4 nozzles peristaltic pump liquid filler filling machine 2.4L/min
  • Auto desktop 4 nozzles peristaltic pump liquid filler filling machine 2.4L/min
Auto desktop 4 nozzles peristaltic pump liquid filler filling machine 2.4L/min Auto desktop 4 nozzles peristaltic pump liquid filler filling machine 2.4L/min Auto desktop 4 nozzles peristaltic pump liquid filler filling machine 2.4L/min Auto desktop 4 nozzles peristaltic pump liquid filler filling machine 2.4L/min

Auto desktop 4 nozzles peristaltic pump liquid filler filling machine 2.4L/min

Inquiry Send Email

Description



Description:

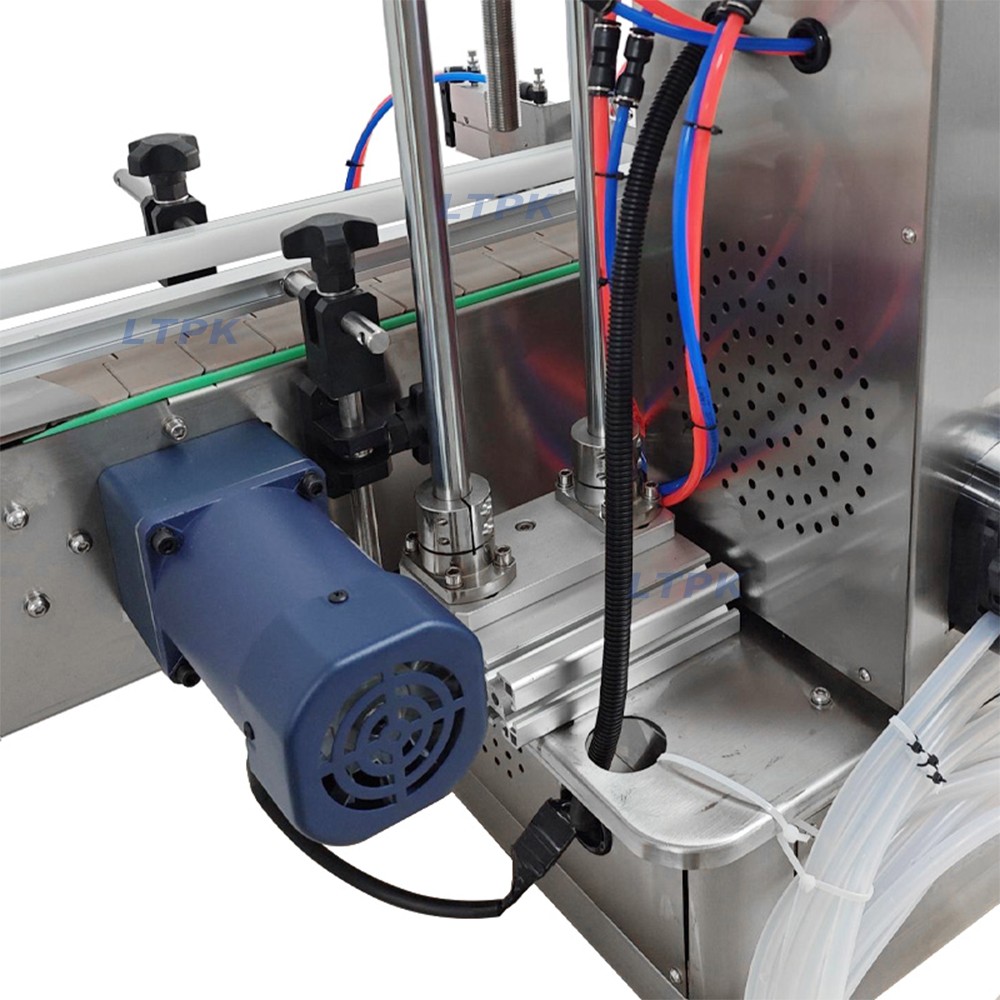

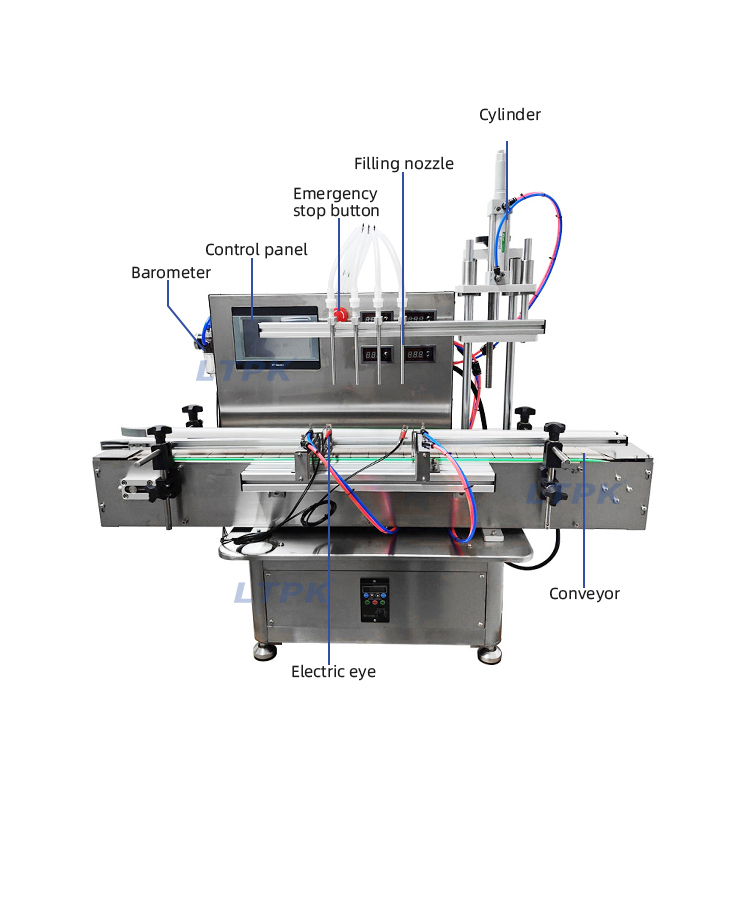

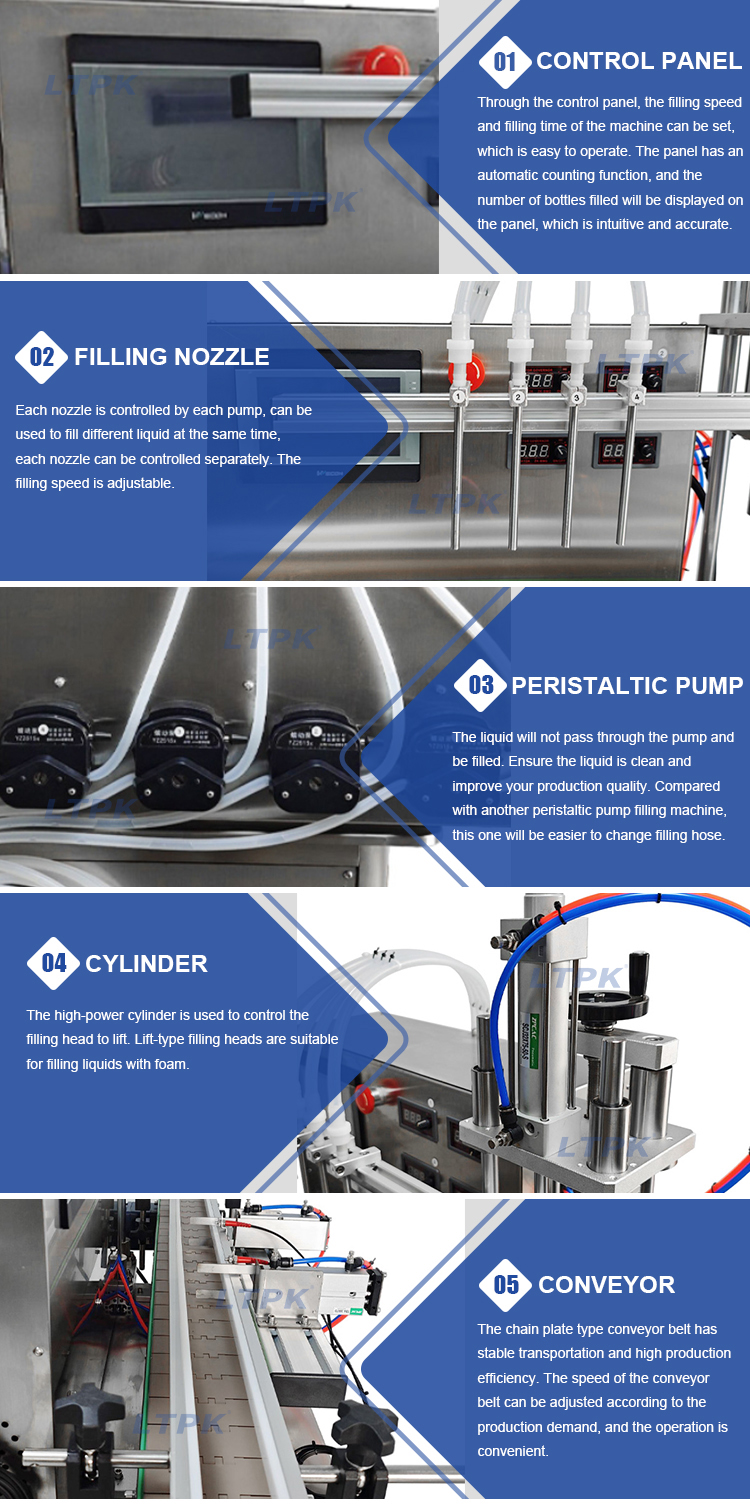

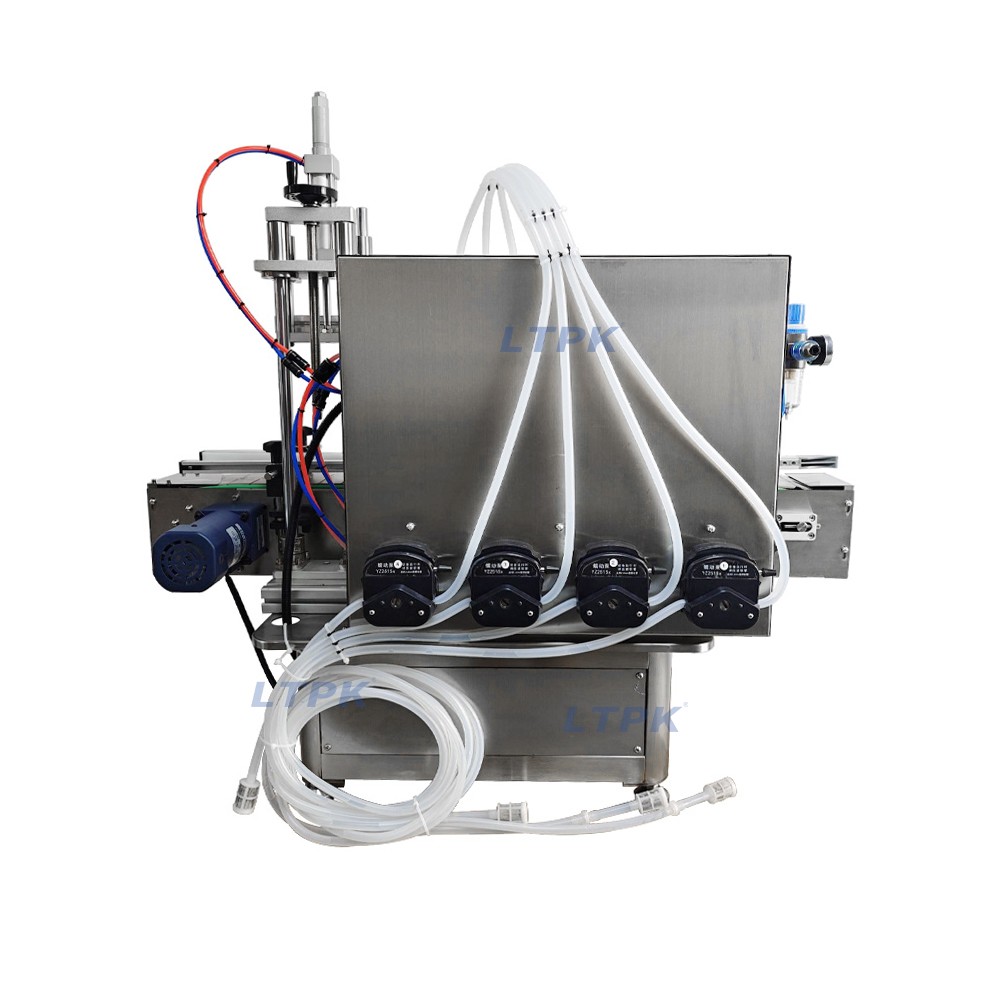

This machine adopts a peristaltic pump design, and the fluid only passes through and comes into contact with the peristaltic pump hose. It is clean and pollution-free, with high repeatability, strong stability, and convenient flow adjustment.It's convenient and simple to change the tube, suitable for filling small doses of liquids with different flavors.Chain plate type conveyor belt, stable transportation, strong load-bearing capacity, lift-type filling head, can be used for filling liquid with foam.



Application:

The peristaltic pump filling machine has a wide range of applications, such as all kinds of food (soy sauce, vinegar, sesame oil), chemicals (solvents, acetone), cosmetics (toner, makeup remover, spray) and other non granular liquids





Model

LT-DPPF04

Voltage Power

220/110V  60W*4

Filling flow rate

2.4L/min

Suggested filling range

5-200ml

Filling speed

30-50bottles/min

Filling Precision

±1%

Max suction lift

2m

Leakage prevention

YES

PW CUT MEMORY

YES

Air pressure

0.3-0.4MPa

Size

About 1220*680*1118mm

Weight

About 120kg
